| Standard: |
EIA RS-310C 19" Rackmount Standard |
| Construction: |
Heavy Duty Cold Rolled Electroplated Steel |
| Color: |
Black (Standard), Beige or Custom |
| Drive Bays: |
12 x 3.5" Swappable Trays |
| Power Supply: |
2U Single up to 600W or 2U Redundant up to 500W ATX P/S (Rear Installation) Max. Depth 300mm |

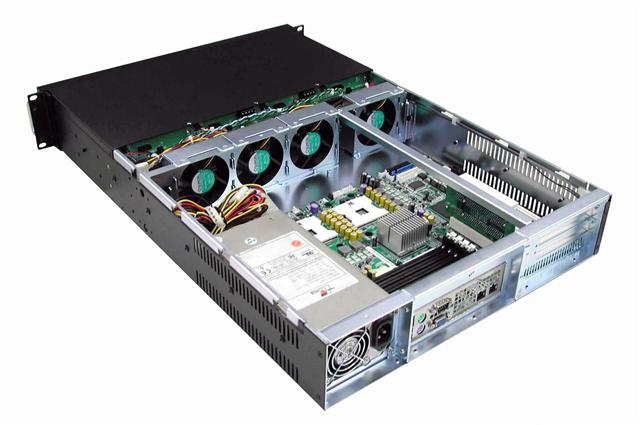

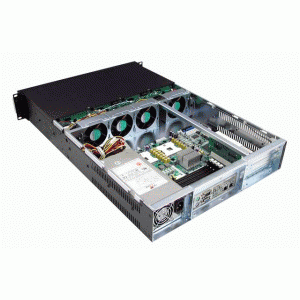

| Cooling Units: |
4x (80mm = 42.5CFM ea.) Fans |
| Expansion Slot: |
2 or 3x Horizontal ISA/PCI/AGP Option Slots(GHI-290) or 7x Low Profile PCI Slots(GHI-290V) |
| Connector Port (front): |
NA |
| Indicators: |
|
| Buttons: |
Power ON/OFF Momentary (Pushbutton), System Reset, Buzzer Reset |
| Crossbar: |
|
| Thermal Card: |
GHA-CO04 |

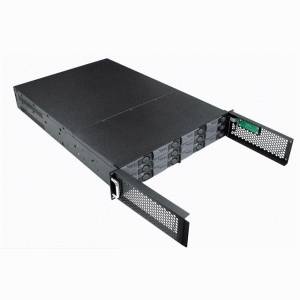

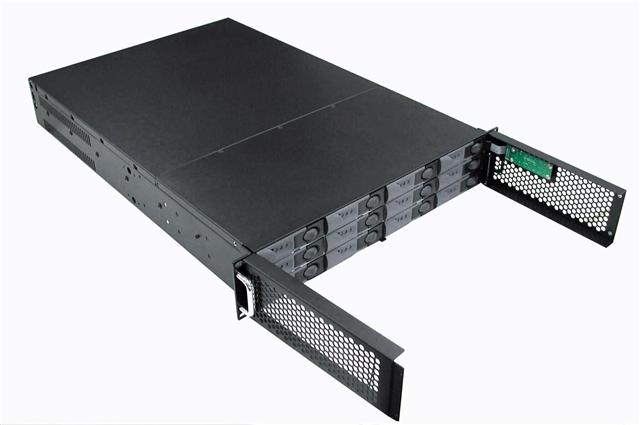

| Front Door(s): |

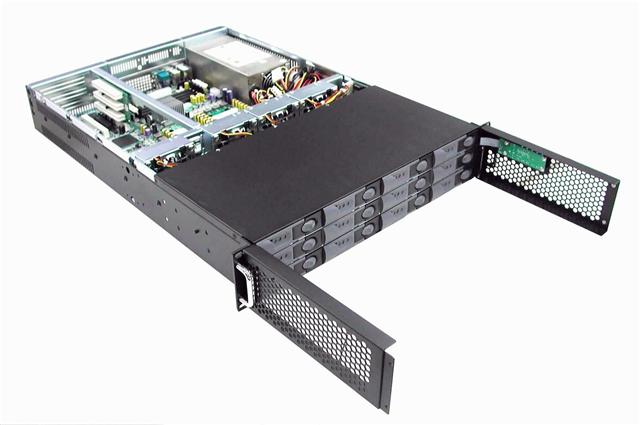

Two Horizontal Doors with 2 Thumbscrews |
| Air Filter: |
|
| Dimensions(W x H x D): |
483 x88 x 650mm (19" x 3.5" x 25.6") |
| Weight: |
16.8 kgs / 37 lbs |
| Cu. ft.: |
4.4 |
| Carton Size: |
58.8 x 25.5 x 82.5 (23.1" x 10" x 32.5") |
| Humidity: |
5% - 95% Non-condensing |
| Product Applications: |
|
