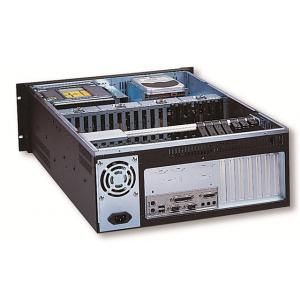

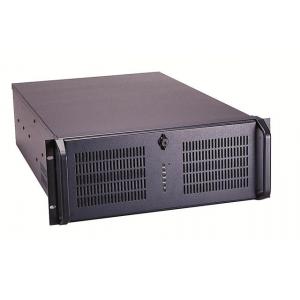

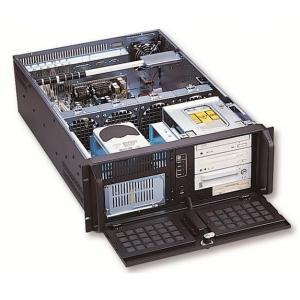

| Model: |
GH-432 |
| Max. Board Size: |
EATX (12" x 13") or (SR Version; 19 or 20 slots back panel) GHP-2020, GHP-2020S, GHP-2220, GHP-2220G, GHP-2220Q |
| System Board Type: |
Intel or AMD |
| Standard: |
EIA RS-310C 19" Rackmount Standard |
| Construction: |
Heavy Duty Cold Rolled Electroplated Steel |
| Color: |
Black (Standard) or Custom |
| Drive Bays: |
3x 5.25" & 1x 3.5" & 2x 3.5"HDD & 2x 3.5"HDD (Optional) |
| Power Supply: |
PS/2 Size Single or Mni Redundant ATX PSU (Front Installation) Max. Depth 200mm |
| Cooling Units: |
Hot Swappable 4x (92mm = 51CFM ea.) Fans & 1x (80mm = 42.5CFM ea.) Fans (GH-432 - Optional) |
| Expansion Slot: |
7 slots (ATX), 19 or 20 slots (SR version) |
| Connector Port (front): |
2x USB Ports (Optional) |
| Indicators: |
LEDs for Power ON/OFF, HDD Activity |
| Buttons: |
Power ON/OFF Momentary (Pushbutton), System Reset |
| Crossbar: |
Flexible Hold Down Bar Included |
| Thermal Card: |
GHA-CO03 (Optional) |
| Front Door(s): |
Single Door with 1 Thumb Twist Keylock |
| Air Filter: |
Inside Front Door (Washable) |
| Dimensions(W x H x D): |
483x177x671mm (19" x 7.0" x 26.4") |
| Weight: |
21.0kgs / 46.3lbs |
| Cu. ft.: |
5.8 |
| Carton Size: |
85.4 x 33.6 x 57.6 (33.6" x 13.2" x 22.7") |
| Humidity: |
5% - 95% Non-condensing |
| Product Applications: |
|
| HDD Drive Accessories: |
GHA-H432, GHK-431, GHA-H300, GHK-425, GHA-FM03/FH03, GHA-FM04/FH04, GHA-FM05/FH05, GHA-FM06, GHA-FM07, GHA-F10, GHA-F11, GHA-F12, GHA-H01 |
| Slide Rails: |
GHA-SL20, GHA-SL26 |
| Chassis Height: |
4U |
|
|
