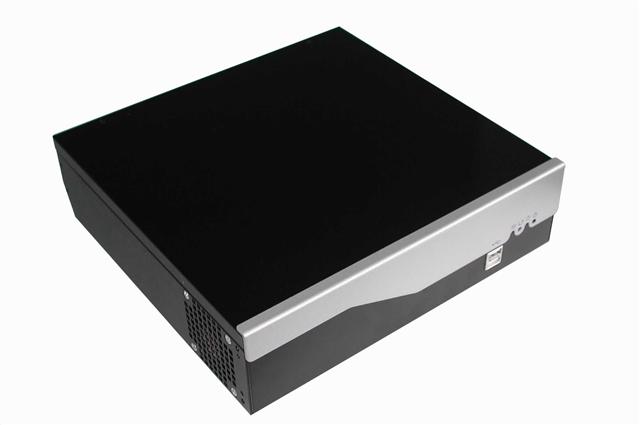

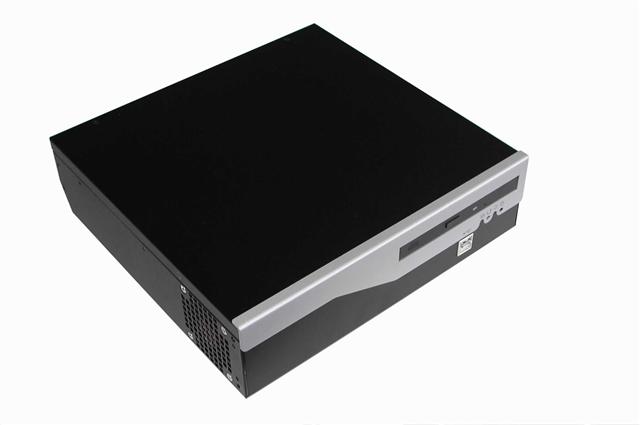

GHB-B05


More Product Pictures
Download File

Specifications

Model: GHB-B05
Mounting: Rack Mount or Wall Mount or Desktop
Construction: Heavy Duty Cold Rolled Electroplated Steel
Color: Black (Standard) or Custom



  Product Information
Board: Supports Mini-ITX M/B (Max. to 6.7" x 6.7")
Drive Capacity:

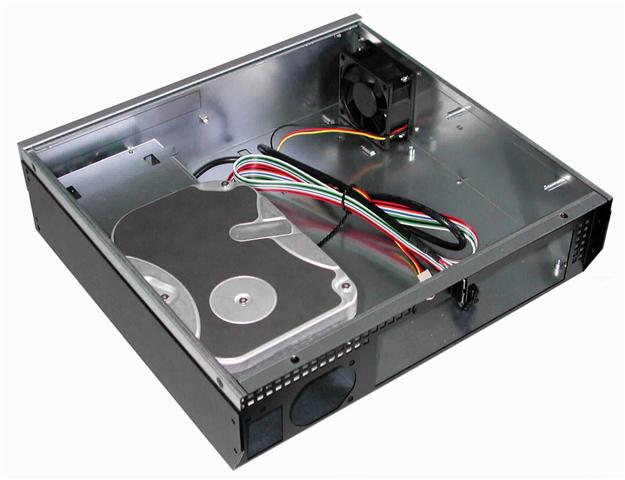

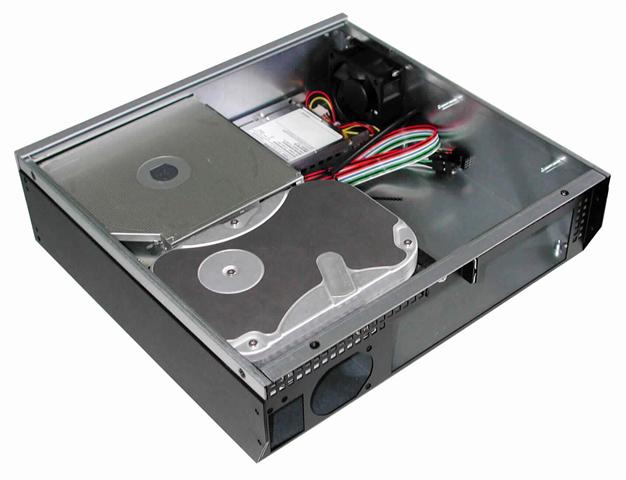

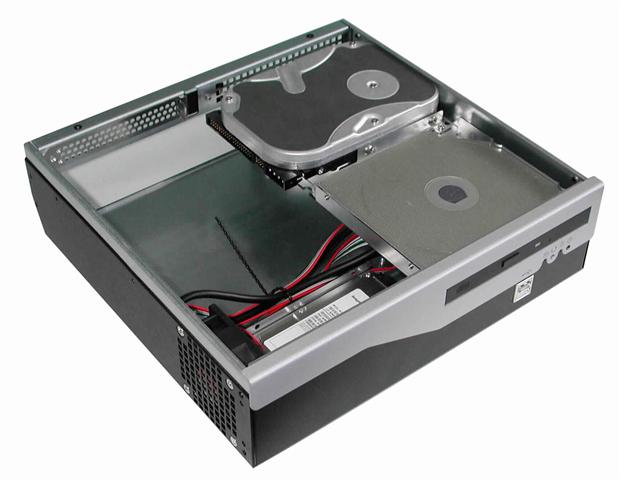

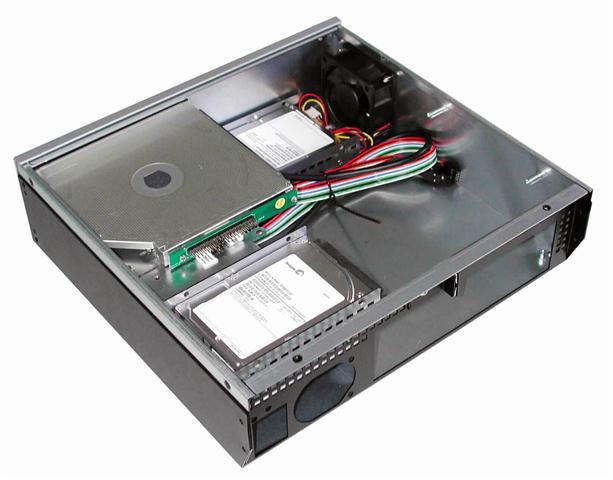

* GHB-B05-A: 1x Slim ODD + 1x 3.5"HDD + 2x 2.5"HDD/SSD Bay.

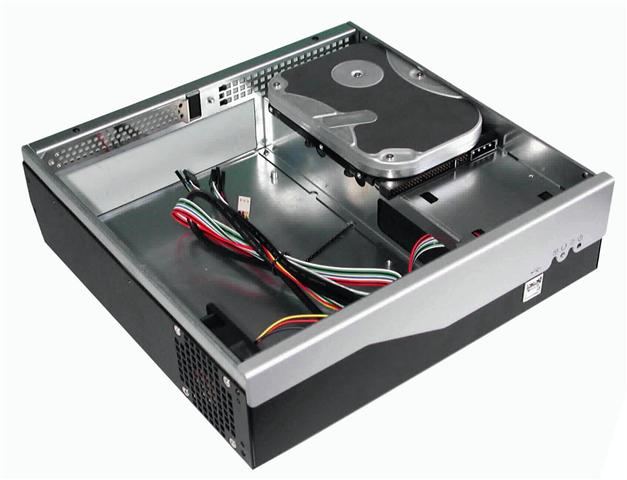

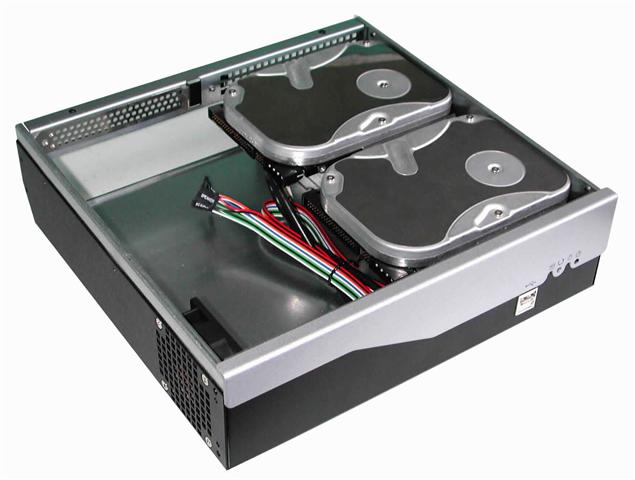

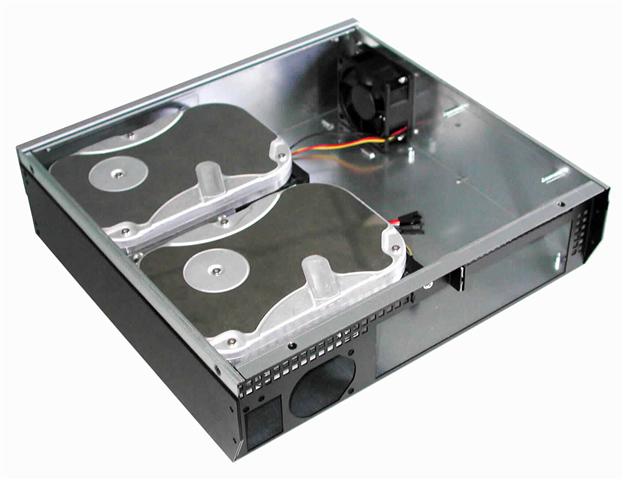

* GHB-B05-B: 1x 3.5"HDD + 2x 2.5"HDD/SSD Bay.

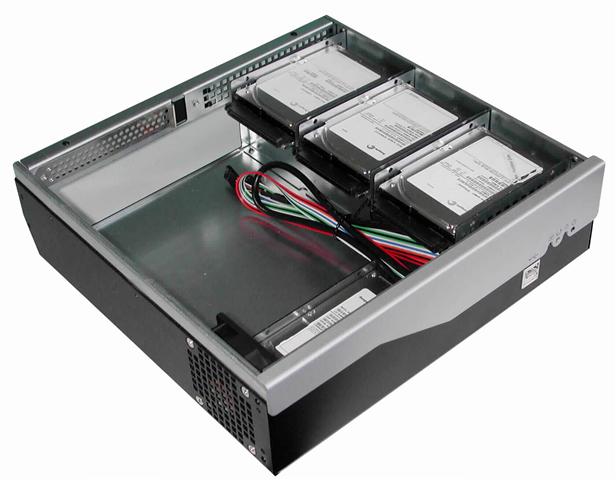

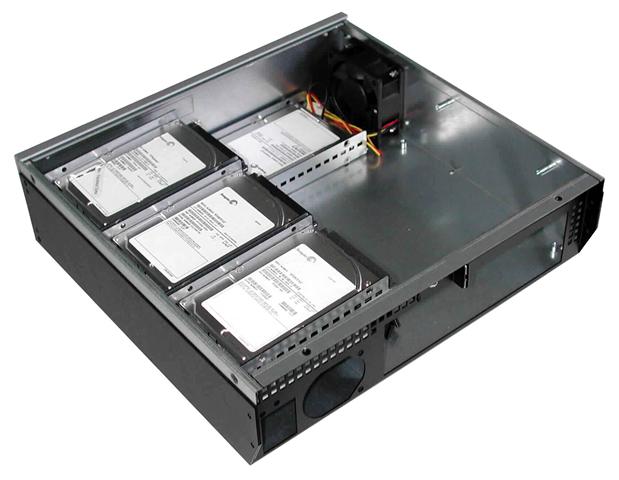

* GHB-B05-C: 8x 2.5"HDD/SSD Bay.

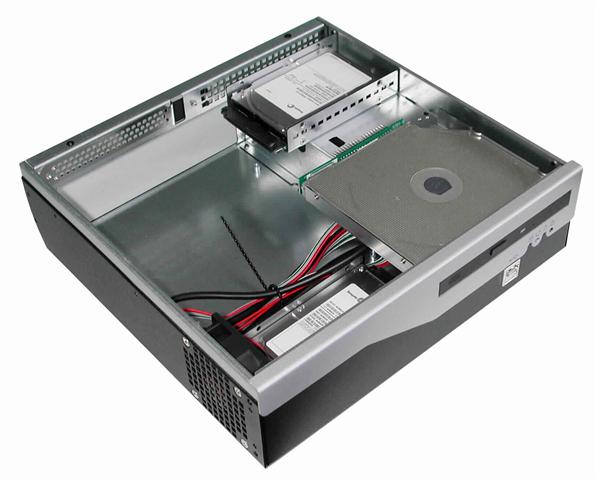

* GHB-B05-D: 1x Slim ODD + 4x 2.5"HDD/SSD Bay.
Power Supply (Optional): Flex-ATX PSU (Rear Installation) Max. Depth 150mm
Cooling: 1x(60mm = 23.5CFM ea.) Fan
Expansion Slots: 2x PCI/PCI-e Slots
Connector Port (Front): 2x USB Ports
Front Door: N/A
Air Filter: N/A
Thermal Management Card: N/A
Indicators: LEDs for Power ON/OFF, HDD Activity
Hold Down Bar: N/A
Switch: Power ON/OFF, System Reset
Dimensions: 280 x 77 x 268mm (11" x 3" x 10.6")
Cuft: 0.8
GW: 3.4 kgs / 7.5 lbs
Carton Size: 37.3 x 17.5 x 36.3(14.7" x 6.9" x 14.3")
Humidity: 5% - 95% Non-condensing


  Optional Accessories

HDD Drive Accessories: GHA-H300-2X25
For Rackmount: PT-B05-RB
For Wallmount:  PT-B05-WB
Riser Card:

* GHP-PCI106H - 1x 32bit PCI Slot.

* GHP-R0118 - 1x PCI-e X16 Slot.
