Input / Output Ratings

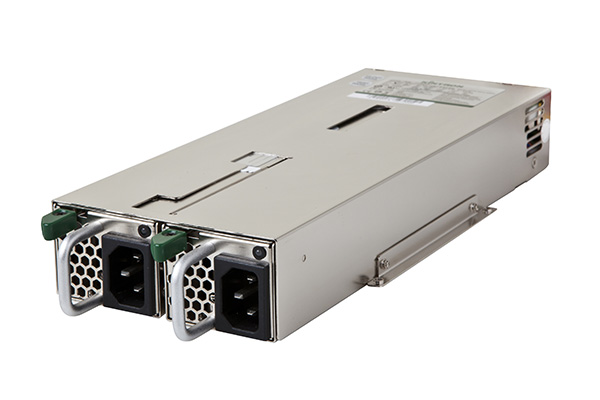

Model 　Input(AC) 　Output(DC) Voltage Frequency Current Watt Load +5V +3.3V +12V -5V -12V 5Vsb KT-300HA 100-240V 47-63Hz 5A-2.5A 300W Max. 20A 20A 24A   0.5A 2A Min. 1A 1A 2A   0A 0.1A Max. Comb. └ 120W ┘ 288W   6W 10W

Electrical Specification

Regulation, Ripple & Noise
Item / Output		+5V	+3.3V	+12V	-12V	5Vsb
Load Regulation		±5%	±5%	±5%	±5%	±5%
Cross Regulation		±5%	±5%	±5%	±5%	±5%
Line Regulation		±1%	±1%	±1%	±1%	±1%
Ripple & Noise		50mV	50mV	120mV	120mV	50mV

Note：Single rail for +12V output relates to +12V1 only
