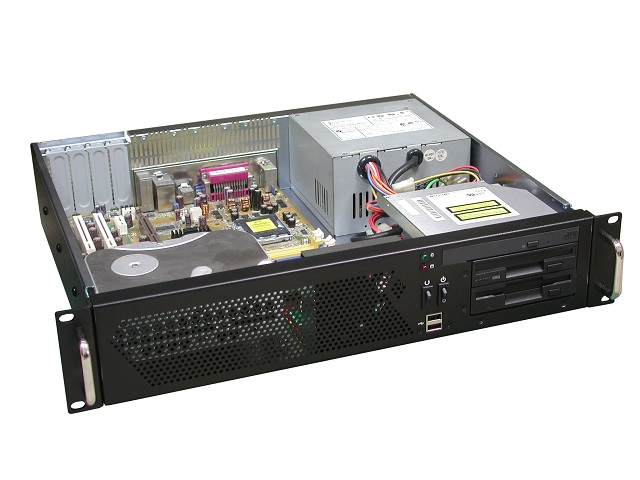

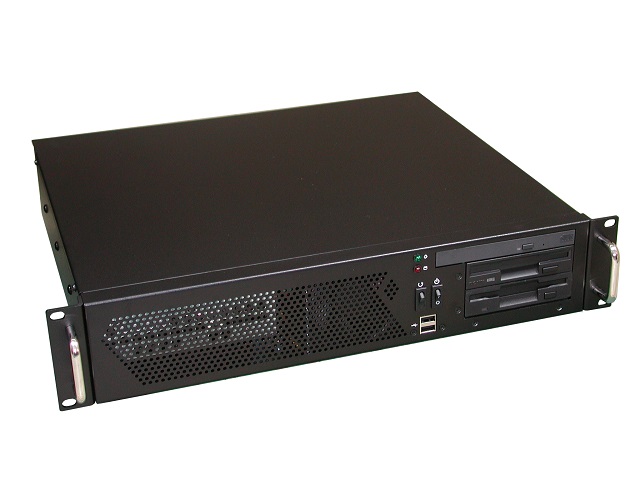

GHI-254A


More Product Pictures
Download File

Specifications




Model: GHI-254A
Max. Board Size: ATX M/B (Max.to 9.6" x 9.6")
System Board Type: Core i, Core2Duo, Core2Quad, Pentium, Dual Xeon, AMD 64, Dual Opteron, Athlon



  Product Information
Standard: EIA RS-310C 19" Rackmount Standard
Construction: Heavy Duty Cold Rolled Electroplated Steel
Color: Black (Standard), Beige or Custom
Drive Capacity 1x 5.25" Slim CD-ROM & 2x 3.5" FDD & 2x 3.5" HDD
Power Supply: PS/2 Size Single ATX P/S (Rear Installation) Max. Depth 150mm
Cooling Units: 1x (80mm = 42.5CFM ea.) Fan
Expansion Slot: 4x Low Profile PCI Slots
Indicators: LEDs for Power ON/OFF, HDD Activity
Switch: Power ON/OFF Momentary (Rocker), System Reset
Dimensions (W x H x D): 483 x 88 x 383mm (19" x 3.5" x 15.1")
Weight: 9.1 kgs/ 20.1 lbs
Cu. ft.: 2.9
Carton Size: 59.0 x 25.5 x 55.0 (23.2" x 10.0" x 21.7")
Humidity: 5% - 95% Non-condensing



  Optional Accessories
HDD Drive Accessories:
Slide Rails:
Chassis Height: 2U
