| Standard: |
EIA RS-310C 19" Rackmount Standard |
| Construction: |
Heavy Duty Cold Rolled Electroplated Steel |
| Color: |
Black (Standard) or Custom |

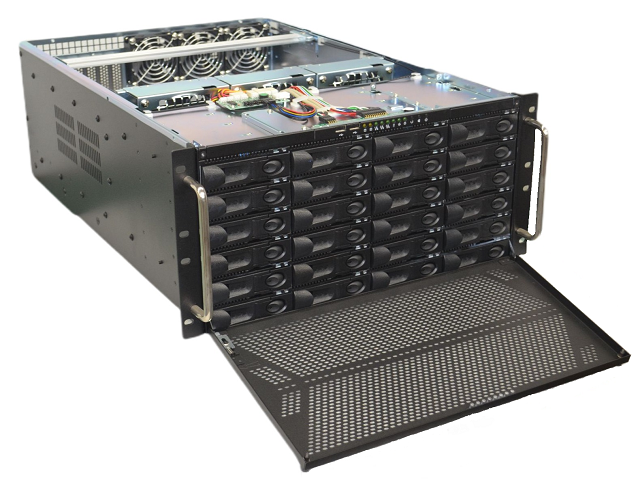

| Drive Bays: |
1x Slim CD-ROM , 1x Slim FDD & 24x 3.5" Hot Swappable Trays & 1x 2.5" HDD & 2x 3.5" HDD (Optional) |
| Power Supply: |
Support 1U Redundant ATX PSU (Rear Installation) Max. Depth 300mm |

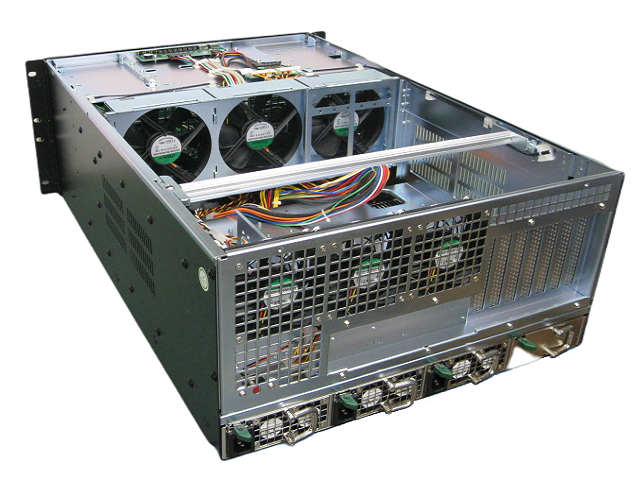

| Cooling Units: |
3x (120mm = 90CFM ea.) Fans & 3x (80mm= 42.5CFM ea.) Fans |
| Expansion Slot: |
7 Slots |
| Connector Port (front): |
2x USB Ports |
| Indicators: |
|
| Buttons: |
Power ON/OFF Momentary (Dimple), System Reset, Buzzer Reset |
| Crossbar: |
|
| Thermal Card: |
|
| Front Door(s): |
Single Door With 2 Thumbscrews (Removable) |
| Air Filter: |
|
| Dimensions(W x H x D): |
483 x 222 x 650mm (19" x 8.7" x 25.6") |
| Weight: |
33.5 kgs / 73.9 lbs |
| Cu. ft.: |
6.8 |
| Carton Size: |
85.5 x 37 x 61 (33.7" x 14.6" x 24") |
| Humidity: |
5% - 95% Non-condensing |
| Product Applications: |
|
